ESD3V3D9B - ESD Protection Device

Product Overview

MCC

Part number	ESD3V3D9B
Manufacturer	MCC
File Size	420.21 KB
Description	ESD Protection Device

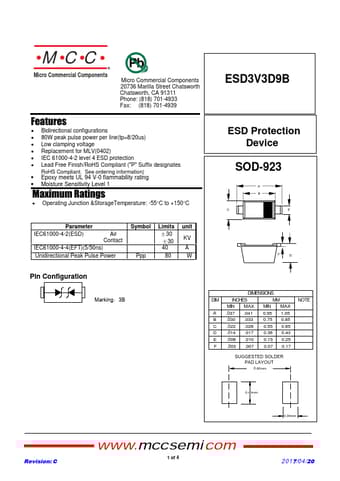

Datasheet	ESD3V3D9B Datasheet
Additional preview pages of the ESD3V3D9B datasheet.

Bidirectional configurations.
80W peak pulse power per line(tp=8/20us).
Low clamping voltage.
Replacement for MLV(0402).
IEC 61000-4-2 level 4 ESD protection.
Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information).
Epoxy meets UL 94 V-0 flammability rating.
Moisture Sensitivity Level 1 Maximum Ratings.
Operating Junction &StorageTemperature: -55°C to +150°C Parameter IEC6.
