FR1A-L - 1 Amp Fast Recovery Silicon Rectifier

MCC

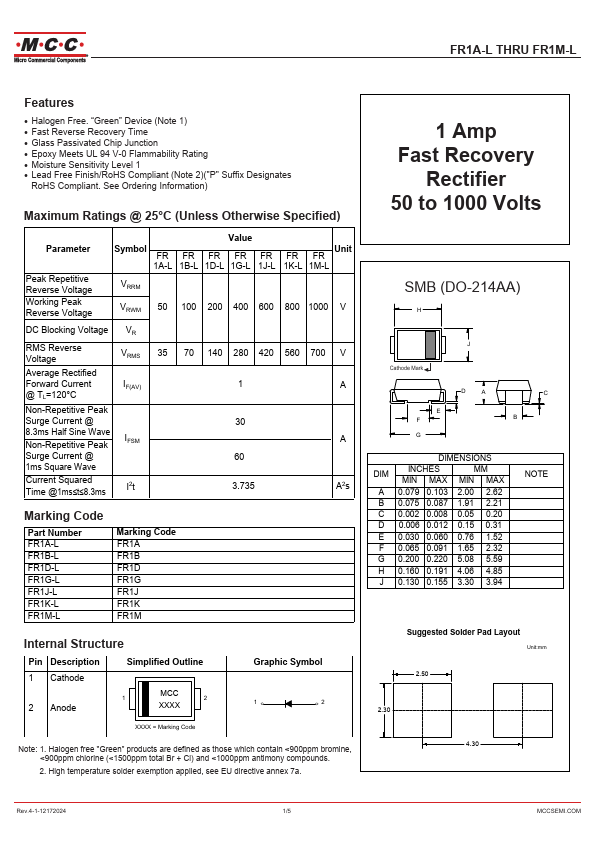

FR1A-L Datasheet Preview — Preview of FR1A-L PDF

Datasheet Details

Part number	FR1A-L
Manufacturer	MCC
File Size	922.25 KB
Description	1 Amp Fast Recovery Silicon Rectifier
Datasheet	FR1A-L-MCC.pdf

FR1A-L Product details

Description

1 Cathode Simplified Outline 2 Anode 1 MCC 2 XXXX XXXX = Marking Code Graphic Symbol 1 2 Note: 1. Halogen free "Green” products are defined as those which contain

Features

Halogen Free. “Green” Device (Note 1).
Fast Reverse Recovery Time.
Glass Passivated Chip Junction.
Epoxy Meets UL 94 V-0 Flammability Rating.
Moisture Sensitivity Level 1.
Lead Free Finish/RoHS Compliant (Note 2)("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings @ 25°C (Unless Otherwise Specified) Parameter Peak Repetitive Reverse Voltage Working Peak Reverse Voltage Value Symbol FR FR FR FR FR FR FR Unit 1A-.
