FR1M-L - 1 Amp Fast Recovery Silicon Rectifier

This page provides the datasheet information for the FR1M-L, a member of the FR1A-L 1 Amp Fast Recovery Silicon Rectifier family.

Datasheet Summary

Description

Note: 1.

Features

  • Halogen Free. “Green” Device (Note 1).
  • Fast Reverse Recovery Time.
  • Glass Passivated Chip Junction.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Moisture Sensitivity Level 1.
  • Lead Free Finish/RoHS Compliant (Note 2)("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings @ 25°C (Unless Otherwise Specified) Parameter Peak Repetitive Reverse Voltage Working Peak Reverse Voltage Value Symbol FR FR FR FR FR FR FR Unit 1A-.

📥 Download Datasheet

Datasheet preview – FR1M-L

Datasheet Details

Part number FR1M-L
Manufacturer MCC
File Size 922.25 KB
Description 1 Amp Fast Recovery Silicon Rectifier
Datasheet download datasheet FR1M-L Datasheet

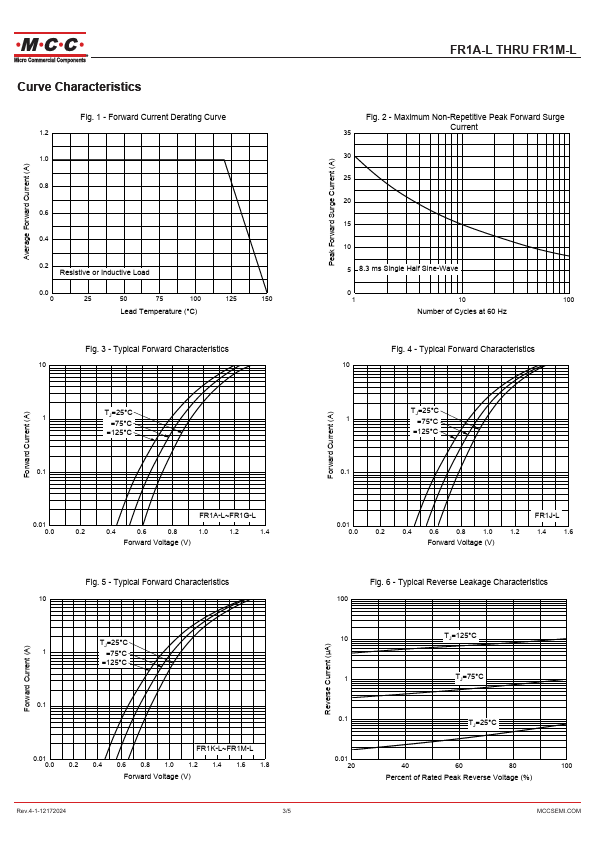

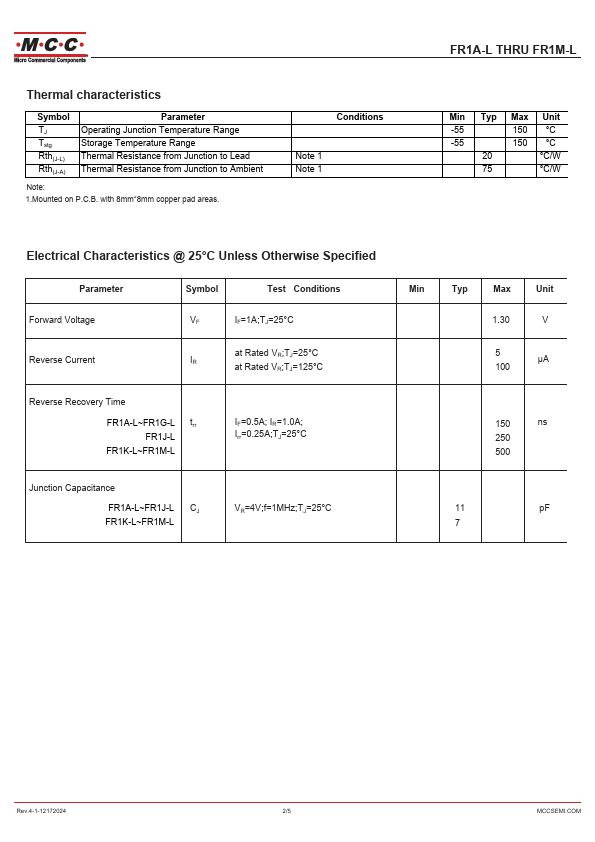

Additional preview pages of the FR1M-L datasheet.

📁 Similar Datasheet

  • FR1M - 1.0A SURFACE MOUNT GLASS PASSIVATED FAST RECOVERY DIODE (WON-TOP)
  • FR1M - SURFACE MOUNT FAST RECOVERY RECTIFIER (PAN JIT)
  • FR1M - SURFACE MOUNT FAST RECOVERY RECTIFIER (JQC)
  • FR1M - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES (Sunmate)
  • FR1M - 1.0A SURFACE MOUNT FAST RECOVERY RECTIFIER (SMC Diode)
  • FR1M - Fast Switching Surface Mount Si-Rectifiers (Diotec)
  • FR1M - Surface Mount Fast Recovery Rectifiers (LGE)
  • FR1M - SURFACE MOUNT FAST RECOVERY RECTIFIER (SEMTECH)
  • FR1M - GLASS PASSIVATED FAST RECOVERY RECTIFIER (DIODES)
  • FR1MFL - SUFACE MOUNT FAST RECOVERY RECTIFIER DIODES (Sunmate)
Other Datasheets by MCC

Full PDF Text Transcription

Click to expand full text

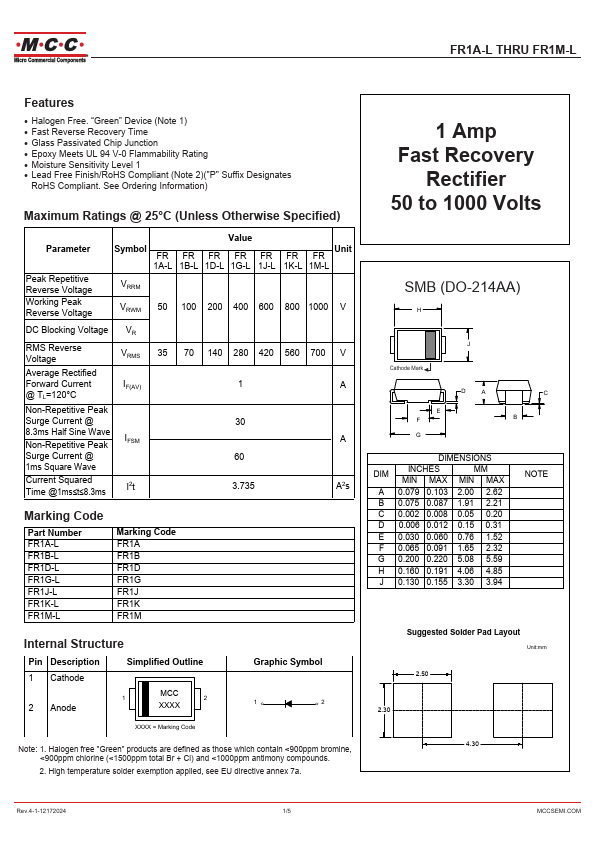

FR1A-L THRU FR1M-L Features • Halogen Free. “Green” Device (Note 1) • Fast Reverse Recovery Time • Glass Passivated Chip Junction • Epoxy Meets UL 94 V-0 Flammability Rating • Moisture Sensitivity Level 1 • Lead Free Finish/RoHS Compliant (Note 2)("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings @ 25°C (Unless Otherwise Specified) Parameter Peak Repetitive Reverse Voltage Working Peak Reverse Voltage Value Symbol FR FR FR FR FR FR FR Unit 1A-L 1B-L 1D-L 1G-L 1J-L 1K-L 1M-L VRRM VRWM 50 100 200 400 600 800 1000 V DC Blocking Voltage VR RMS Reverse Voltage VRMS 35 70 140 280 420 560 700 V Average Rectified Forward Current IF(AV) 1 A @ TL=120°C Non-Repetitive Peak Surge Current @ 30 8.
