FR3AB - 3 Amp Fast Recovery Rectifier

Product Overview

MCC

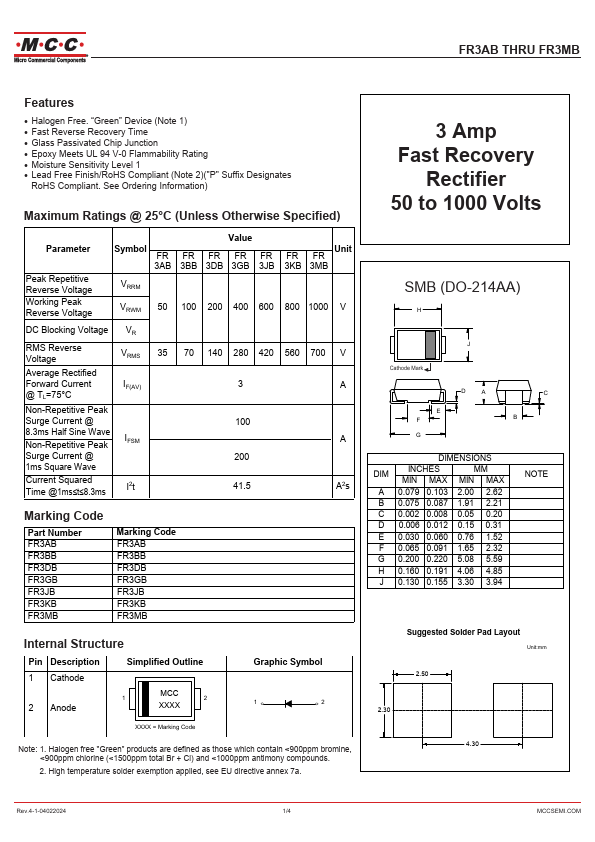

FR3AB 3 Amp Fast Recovery Rectifier by MCC - Datasheet Preview — Datasheet preview – FR3AB

Datasheet Details

Part number	FR3AB
Manufacturer	MCC
File Size	941.50 KB
Description	3 Amp Fast Recovery Rectifier
Datasheet	FR3AB Datasheet

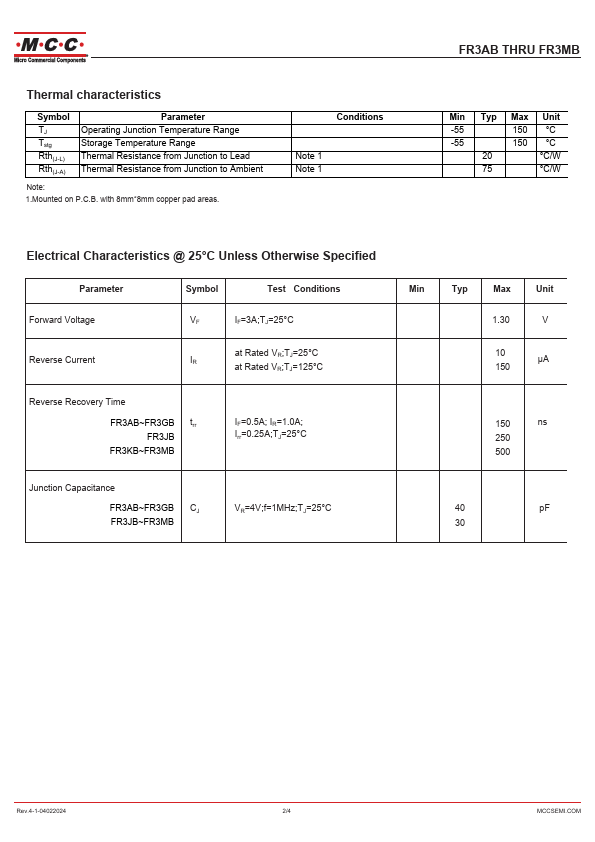

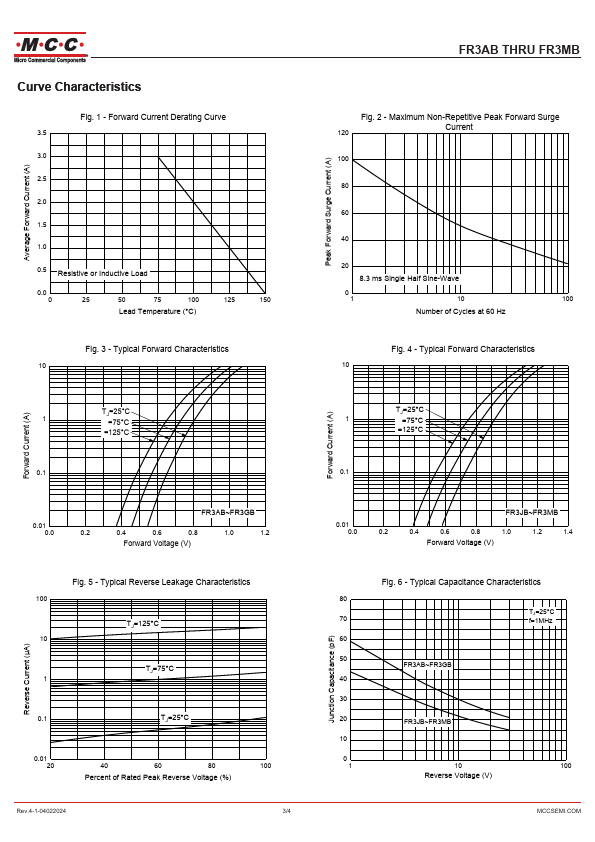

Additional preview pages of the FR3AB datasheet.

Product details

Description

1 Cathode Simplified Outline 2 Anode 1 MCC 2 XXXX XXXX = Marking Code Graphic Symbol 1 2 Note: 1. Halogen free "Green” products are defined as those which contain

Features

Halogen Free. “Green” Device (Note 1).
Fast Reverse Recovery Time.
Glass Passivated Chip Junction.
Epoxy Meets UL 94 V-0 Flammability Rating.
Moisture Sensitivity Level 1.
Lead Free Finish/RoHS Compliant (Note 2)("P" Suffix Designates RoHS Compliant. See Ordering Information) Maximum Ratings @ 25°C (Unless Otherwise Specified) Parameter Peak Repetitive Reverse Voltage Working Peak Reverse Voltage Value Symbol FR FR FR FR FR FR FR Unit 3AB.
