FR6A - 6 Amp Fast Recovery Rectifier

MCC

📥 Download Datasheet

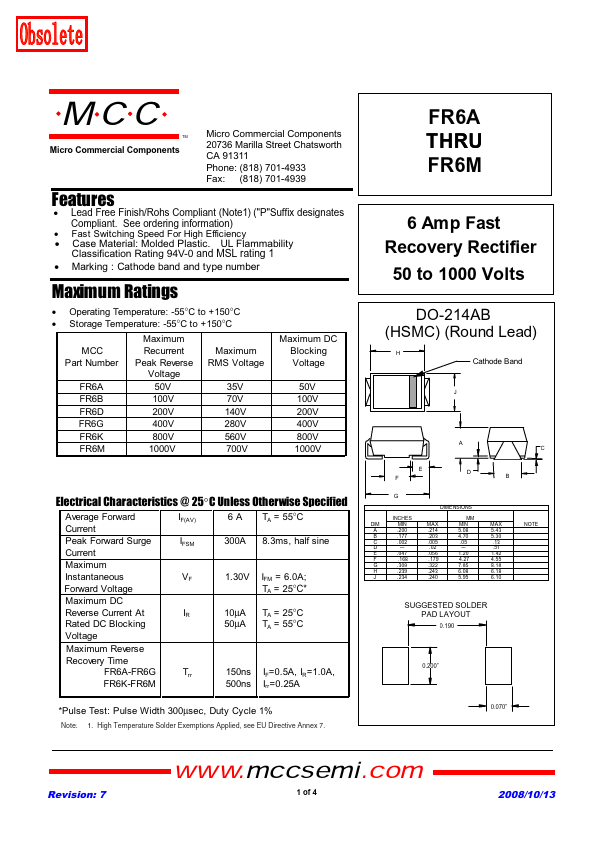

FR6A Datasheet Preview — Preview of FR6A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	FR6A
Manufacturer	MCC
File Size	338.85 KB
Description	6 Amp Fast Recovery Rectifier
Datasheet	FR6A-MCC.pdf

FR6A Product details

Features

Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information).
Fast Switching Speed For High Efficiency x Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 and MSL rating 1 x Marking : Cathode band and type number Maximum Ratings.
Operating Temperature: -55°C to +150°C.
Storage Temperature: -55°C to +150°C MCC Part Number FR6A FR6B FR6D FR6G FR6K FR6M Maximum Recurrent Peak Reverse Voltage 50V.
