GS2M-LT, GS2A-LT - 2.0 Amp Glass Passivated Rectifier

GS2M-LT Description

MCC    omponents 20736 Marilla Street Chatsworth    !"# $ %    !"# GS2A-LT THRU GS2M-LT Featur.

GS2M-LT Applications

* Extremely Low Thermal Resistance
* Easy Pick And Place
* High Temp Soldering: 250°C for 10 Seconds At Terminals Maximum Ratings
* Operating Temperature: -55°C to +150°C
* Storage Temperature: -55°C to +150°C
* Maximum Thermal Resistance; 20°C/W Junct

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GS2M-LT, GS2A-LT. Please refer to the document for exact specifications by model.

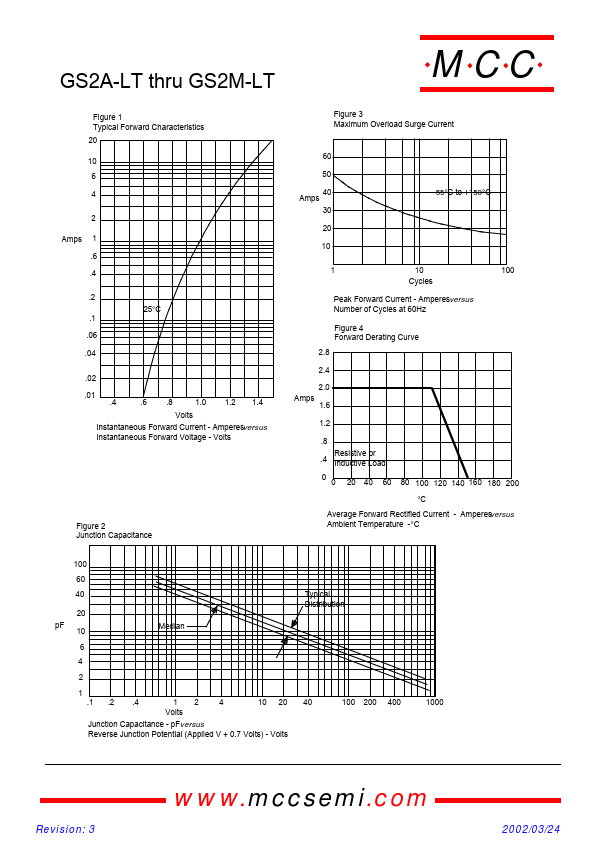

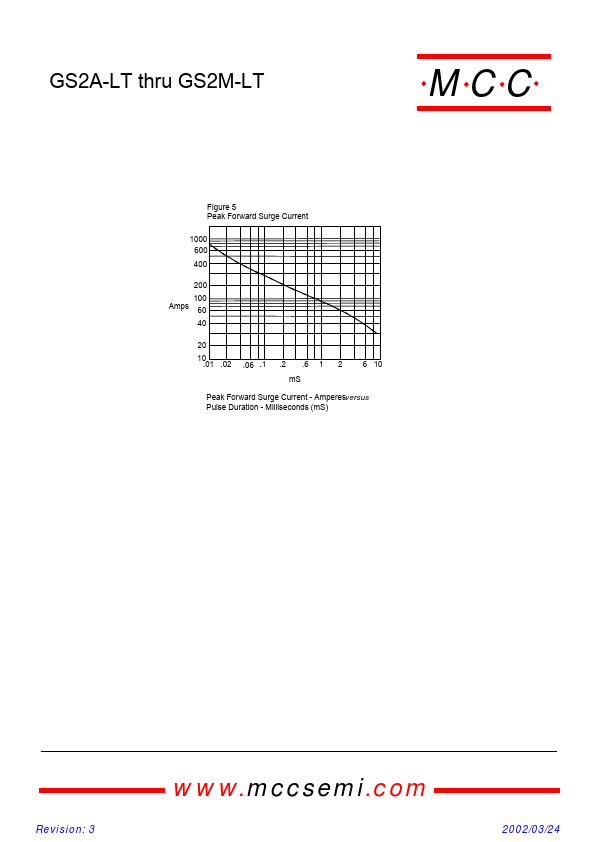

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GS2M-LT, GS2A-LT
Manufacturer
MCC
File Size
530.14 KB
Datasheet
GS2A-LT-MCC.pdf
Description
2.0 Amp Glass Passivated Rectifier
Note
This datasheet PDF includes multiple part numbers: GS2M-LT, GS2A-LT.
Please refer to the document for exact specifications by model.
