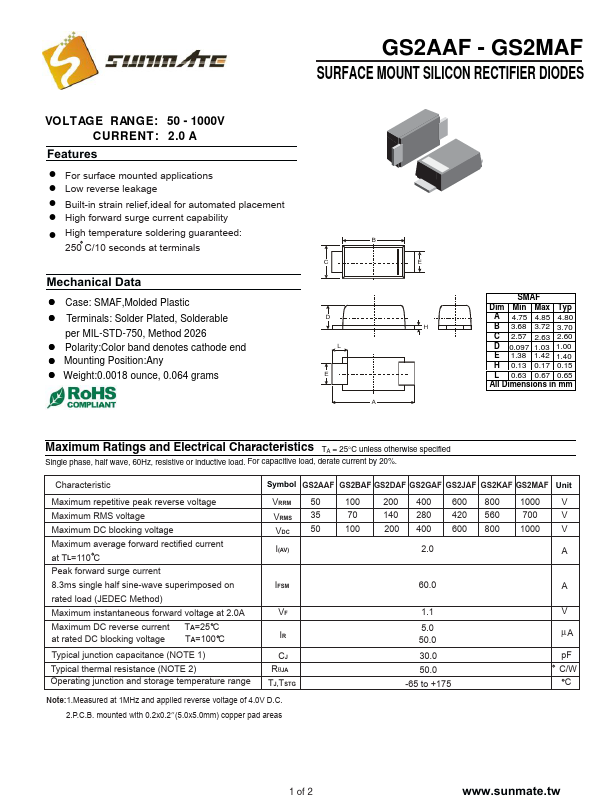

GS2MAF, GS2AAF - SURFACE MOUNT SILICON RECTIFIER DIODES

GS2MAF Description

GS2AAF - GS2MAF SURFACE MOUNT SILICON RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 2.0 A .

GS2MAF Applications

* ! Low reverse leakage ! Built-in strain relief,ideal for automated placement ! High forward surge current capability ! High temperature soldering guaranteed: B 250 C/10 seconds at terminals C E Mechanical Data ! Case: SMAF,Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GS2MAF, GS2AAF. Please refer to the document for exact specifications by model.

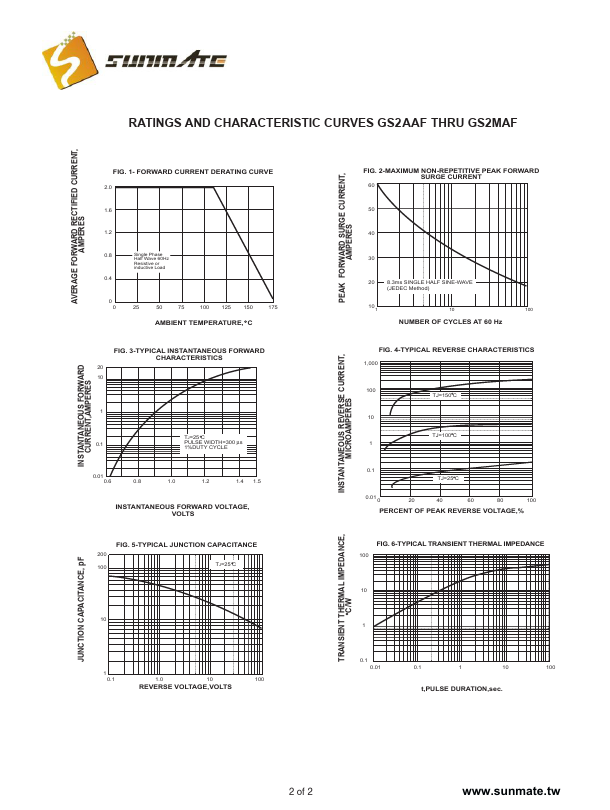

datasheet Preview Page 2

Datasheet Details

Part number
GS2MAF, GS2AAF
Manufacturer
Sunmate
File Size
343.73 KB
Datasheet
GS2AAF-Sunmate.pdf
Description
SURFACE MOUNT SILICON RECTIFIER DIODES
Note
This datasheet PDF includes multiple part numbers: GS2MAF, GS2AAF.
Please refer to the document for exact specifications by model.
