GS2A - SURFACE MOUNT RECTIFIER DIODES

GS2A Description

GS2A - GS2M SURFACE MOUNT RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 2.0 A .

GS2A Applications

* ! Low reverse leakage ! Built-in strain relief,ideal for automated placement ! High forward surge current capability ! High temperature soldering guaranteed: 250 C/10 seconds at terminals Mechanical Data ! Case : SMB (DO-214AA) Molded plastic ! Epoxy : UL94V-O rate flame retardant ! Lead : Lead form

📥 Download Datasheet

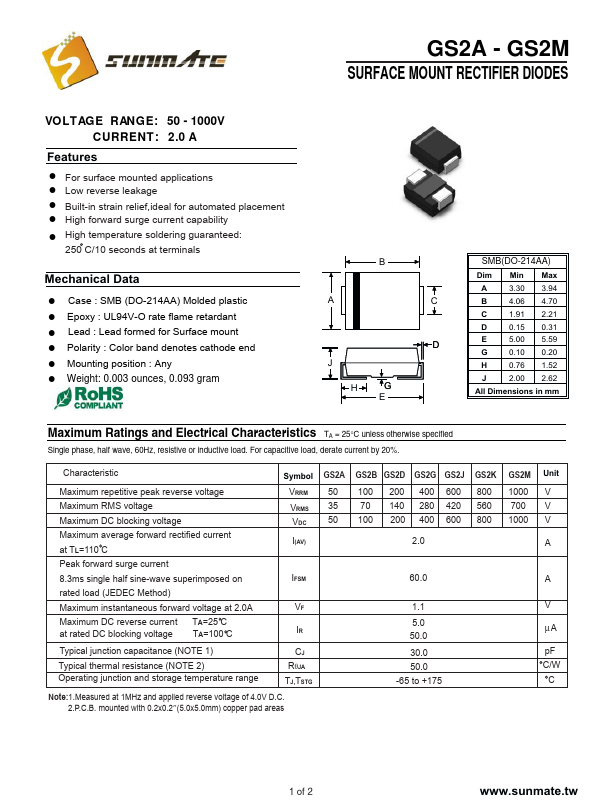

Preview of GS2A PDF

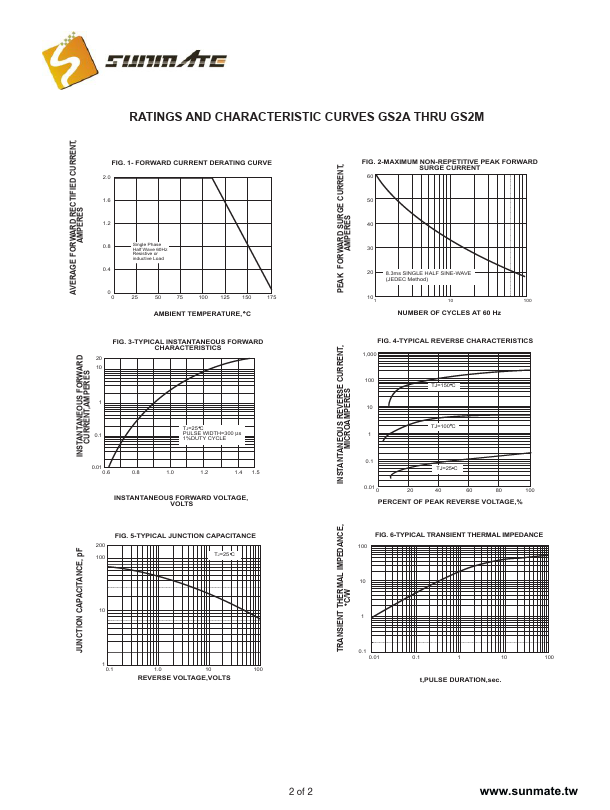

datasheet Preview Page 2

Datasheet Details

Part number
GS2A
Manufacturer
Sunmate
File Size
387.67 KB
Datasheet
GS2A-Sunmate.pdf
Description
SURFACE MOUNT RECTIFIER DIODES
