KTA1267-O - PNP Transistor

Product Overview

MCC

📥 Download Datasheet

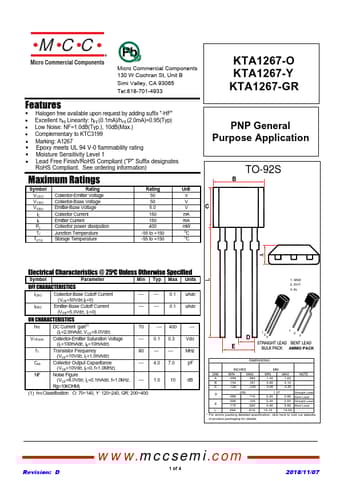

KTA1267-O PNP Transistor by MCC - Datasheet Preview — Datasheet preview – KTA1267-O

Datasheet Details

Part number	KTA1267-O
Manufacturer	MCC
File Size	260.83 KB
Description	PNP Transistor
Datasheet	KTA1267-O Datasheet
Additional preview pages of the KTA1267-O datasheet.

Product details

Features

Halogen free available upon request by adding suffix "-HF".
Excellent hFE Linearity: hFE(0.1mA)/hFE(2.0mA)=0.95(Typ).
Low Noise: NF=1.0dB(Typ. ), 10dB(Max. ).
Complementary to KTC3199.
Marking: A1267.
Epoxy meets UL 94 V-0 flammability rating.
Moisture Sensitivity Level 1.
Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information) Maximum Ratings Symbol VCEO VCBO VEBO IC IE PC TJ TSTG.
