KTA1204L, KTA1204D - EPITAXIAL PLANAR PNP TRANSISTOR

KTA1204L Description

SEMICONDUCTOR TECHNICAL DATA HIGH CURRENT SWITCHING APPLICATION.APPLICATION Relay drivers, high-speed inverters, converters, and other general high-c.

KTA1204L Features

* Low Collector Emitter Saturation Voltage. : VCE(sat)=-0.4V(Max. ) (IC=-4A) High Current and High fT : IC=-8A, fT=130MHz. Excellent Linearity of hFE High Speed Switching Time. : fT=20nS (Typ. ) Complementary to KTC1804D/L MAXIMUM RATING (Ta=25 ) CHARACTERISTIC SYMBOL Collector-Base Voltage Collect

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KTA1204L, KTA1204D. Please refer to the document for exact specifications by model.

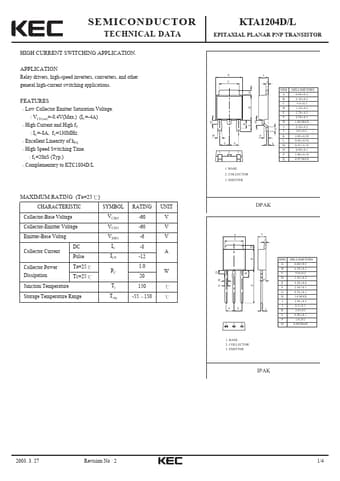

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KTA1204L, KTA1204D
Manufacturer
KEC
File Size
405.36 KB
Datasheet
KTA1204D-KEC.pdf
Description
EPITAXIAL PLANAR PNP TRANSISTOR
Note
This datasheet PDF includes multiple part numbers: KTA1204L, KTA1204D.
Please refer to the document for exact specifications by model.
