MB3505W - 35 Amp Single Phase Bridge Rectifier

MCC

📥 Download Datasheet

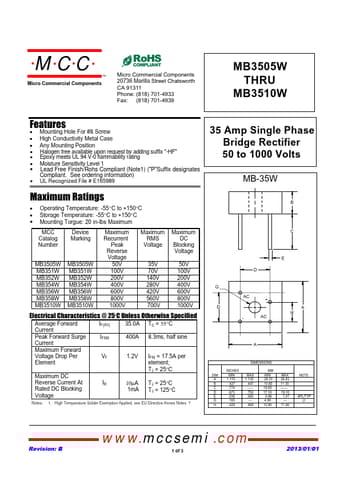

MB3505W Datasheet Preview — Preview of MB3505W PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: MB3505W
Manufacturer: MCC
File Size: 212.89 KB
Datasheet: MB3505W-MCC.pdf
Description: 35 Amp Single Phase Bridge Rectifier

MB3505W Product details

Features

Mounting Hole For #8 Screw.
High Conductivity Metal Case.
Any Mounting Position.
Halogen free available upon request by adding suffix "-HF".
Epoxy meets UL 94 V-0 flammability rating.
Moisture Sensitivity Level 1.
Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information).
UL Recognized File # E165989 35 Amp Single Phase Bridge Rectifier 50 to 1000 Volts MB-35W Maximum Ratings.
