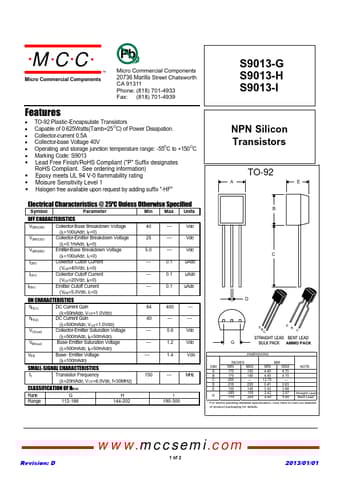

S9013-G
Features
- TO-92 Plastic-Encapsulate Transistors
- Capable of 0.625Watts(Tamb=25OC) of Power Dissipation.
- Collector-current 0.5A
- Collector-base Voltage 40V
- Operating and storage junction temperature range: -55OC to +150OC
- Marking Code: S9013
- Lead Free Finish/Ro HS pliant ("P" Suffix designates
Ro HS pliant. See ordering information)
- Epoxy meets UL 94 V-0 flammability rating
- Moisure Sensitivity Level 1
- Halogen free available upon request by adding suffix "-HF"
NPN Silicon Transistors
TO-92
Electrical Characteristics @ 25OC Unless Otherwise Specified
Symbol
Parameter
Min Max Units
OFF CHARACTERISTICS
V(BR)CBO V(BR)CEO V(BR)EBO ICBO ICEO IEBO
Collector-Base Breakdown Voltage (IC=100u Adc, IE=0)
Collector-Emitter Breakdown Voltage (IC=0.1m Adc, IB=0)
Emitter-Base Breakdown Voltage (IE=100u Adc, IC=0)
Collector Cutoff Current (VCB=40Vdc, IE=0)
Collector Cutoff Current (VCE=20Vdc, IB=0)
Emitter Cutoff Current (VEB=5.0Vdc, IC=0)
40 --- Vdc 25 --- Vdc 5.0 --- Vdc ---...
