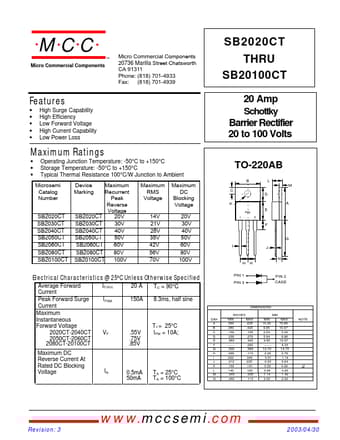

SB20100CT, SB2020CT - Schottky Barrier Rectifier

MCC

Datasheet Details

Part number	SB20100CT, SB2020CT
Manufacturer	MCC
File Size	412.58 KB
Description	Schottky Barrier Rectifier
Datasheet	SB2020CT-MCC.pdf
Note	This datasheet PDF includes multiple part numbers: SB20100CT, SB2020CT. Please refer to the document for exact specifications by model.

High Surge Capability.
High Efficiency.
Low Forward Voltage.
High Current Capability.
Low Power Loss Maximum Ratings.
Operating Junction Temperature: -50°C to +150°C.
Storage Temperature: -50°C to +150°C.
Typical Thermal Resistance 100°C/W Junction to Ambient Microsemi Catalog Number SB2020CT SB2030CT SB2040CT SB2050CT SB2060CT SB2080CT SB20100CT Device Maximum Marking Recurrent Peak Reverse Voltage SB2020CT 20V SB2030C.
