MCC R
Micro Commercial Components
omponents 20736 Marilla Street Chatsworth !"# $
% !"#

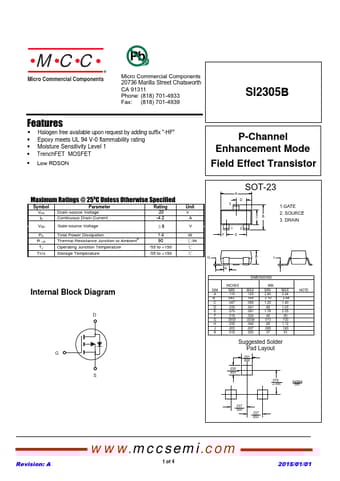

SI2305B
Features
• Halogen free available upon request by adding suffix "-HF" • Epoxy meets UL 94 V-0 flammability rating • Moisture Sensitivity Level 1 • TrenchFET MOSFET
• Low RDSON
P-Channel Enhancement Mode
Field Effect Transistor
Maximum Ratings @ 25OC Unless Otherwise Specified
Symbol VDS ID
Parameter Drain-source Voltage Continuous Drain Current
Rating -20 -4.2
VGS
Gate-source Voltage
±8
PD RθJA
TJ TSTG
Total Power Dissipation Thermal Resistance Junction to Ambientb
Operating Junction Temperature
Storage Temperature
1.4 90 -55 to +150
-55 to +150
Internal Block Diagram
D
G S
Unit V
A
V
W ℃/W ℃ ℃
SOT-23
A
D 3
1.
