RS2BB, RS2AB SURFACE MOUNT FAST RECOVERY RECTIFIER

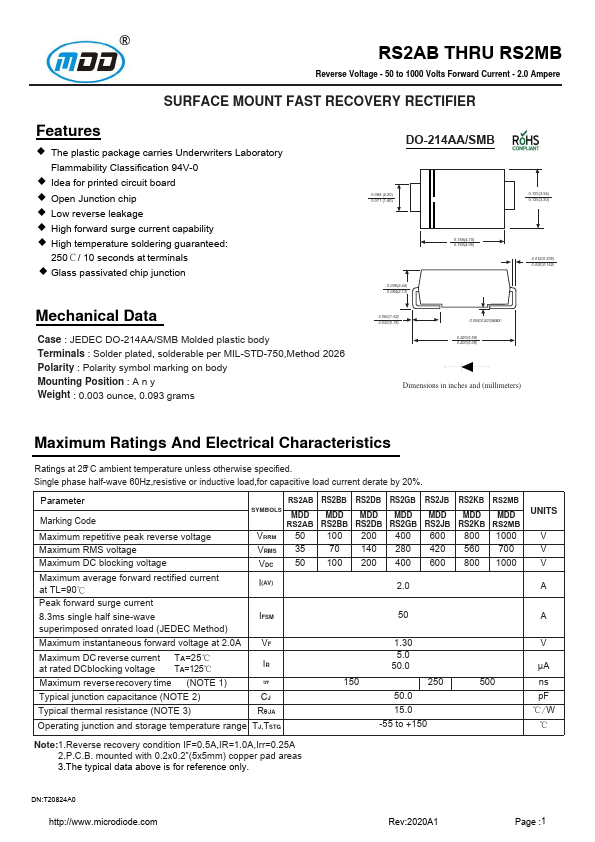

📥 Download Datasheet Datasheet Preview Page 1

Description

RS2AB THRU RS2MB Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Ampere SURFACE MOUNT FAST RECOVERY RECTIFIER .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS2BB, RS2AB. Please refer to the document for exact specifications by model.

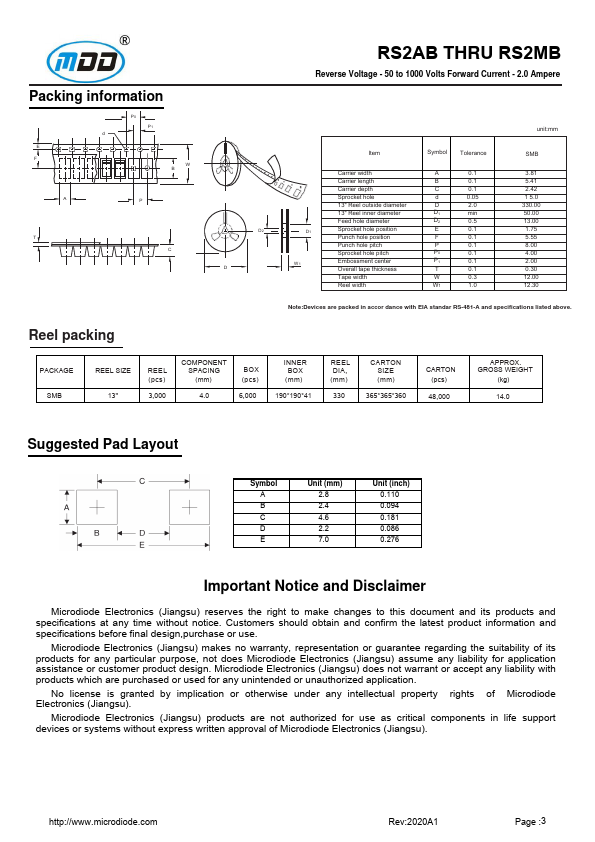

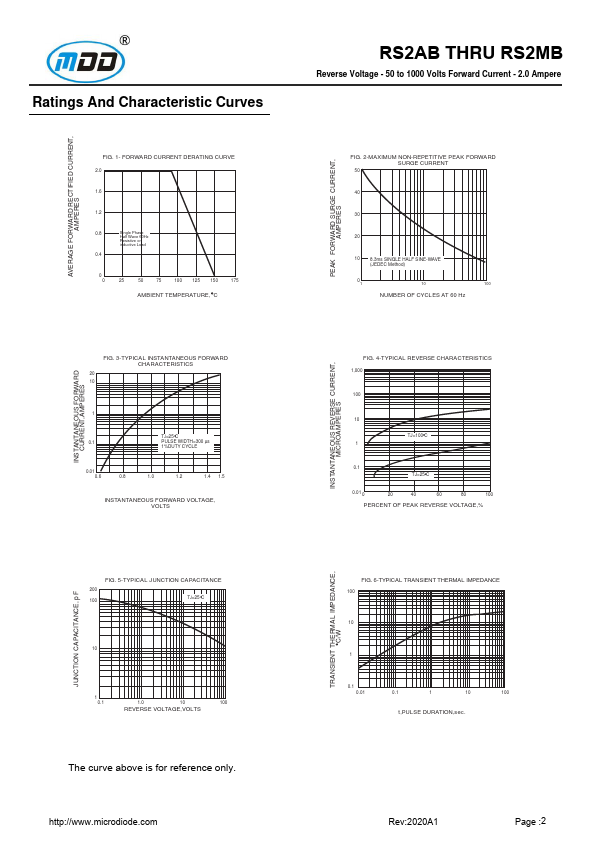

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
RS2BB, RS2AB
Manufacturer
MDD
File Size
283.89 KB
Datasheet
RS2AB-MDD.pdf
Description
SURFACE MOUNT FAST RECOVERY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: RS2BB, RS2AB.
Please refer to the document for exact specifications by model.

Features

* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
* Idea for printed circuit board
* Open Junction chip
* Low reverse leakage
* High forward surge current capability
* High temperature soldering guaranteed: 250
* / 10 seconds at termina
