DF1506M, DF15005M (DF15005M - DF1510M) SINGLE PHASE GLASS PASSIVATED BRIDGE RECTIFIER

DF1506M Description

SINGLE PHASE GLASS PASSIVATED BRIDGE RECTIFIER DF15005M THRU DF1510M .

DF1506M Features

* VOLTAGE RANGE CURRENT 50 to 1000 Volts 1.5 Ampere high forward surge current capability Glass passivated chip junction High case dielectric strength High temperature soldering guaranteed: 260OC / 10 seconds MECHANICAL DATA

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DF1506M, DF15005M. Please refer to the document for exact specifications by model.

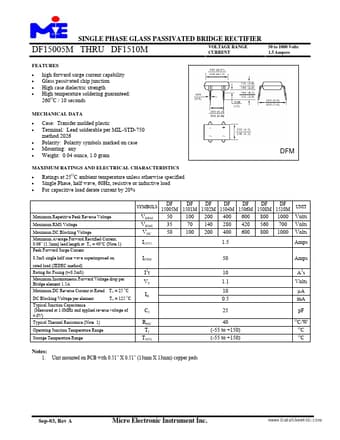

datasheet Preview Page 2

Datasheet Details

Part number
DF1506M, DF15005M
Manufacturer
ME
File Size
120.71 KB
Datasheet
DF15005M_ME.pdf
Description
(DF15005M - DF1510M) SINGLE PHASE GLASS PASSIVATED BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: DF1506M, DF15005M.
Please refer to the document for exact specifications by model.
