DF1510M

(DF15005M - DF1510M) SINGLE PHASE GLASS PASSIVATED BRIDGE RECTIFIER

DF1510M Features

* VOLTAGE RANGE CURRENT 50 to 1000 Volts 1.5 Ampere high forward surge current capability Glass passivated chip junction High case dielectric strength High temperature soldering guaranteed: 260OC / 10 seconds MECHANICAL DATA

DF1510M Datasheet (120.71 KB)

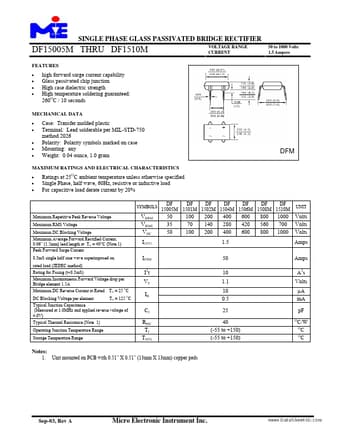

Preview of DF1510M PDF

Datasheet Details

Part number:

DF1510M

Manufacturer:

ME

File Size:

120.71 KB

Description:

(df15005m - df1510m) single phase glass passivated bridge rectifier.
