DF1510

Glass Passivated Bridge Rectifier

DF1510 Features

* ‧Rating to 1000V PRV ‧Ideal for printed circuit board ‧Low forward voltage drop,high current capability ‧Reliable low cost construction utilizing molded plastic technique results in inexpensive product ‧The plastic material has UL flammability classification 94V-0 MAXIMUM RATINGS (TA=25°C unless oth

DF1510 Datasheet (117.26 KB)

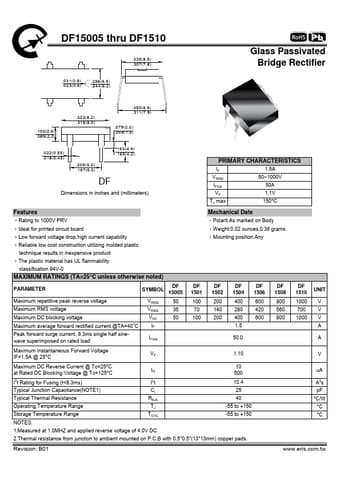

Preview of DF1510 PDF

Datasheet Details

Part number:

DF1510

Manufacturer:

Eris

File Size:

117.26 KB

Description:

Glass passivated bridge rectifier.
DF15005 thru DF1510 .031(0.8) .023(0.6) .256(6.5) .244(6.2) .335(8.5) .307(7.8) Glass Passivated Bridge Rectifier .102(2.6) .089(2.2) .323(8.2) .
