DF1510M - 1.5A Glass Passivated Bridge Rectifier

Product Overview

TAITRON

Part number	DF1510M
Manufacturer	TAITRON
File Size	208.16 KB
Description	1.5A Glass Passivated Bridge Rectifier
Datasheet	DF1510M Datasheet
Note	This datasheet PDF includes multiple part numbers: DF1510M, DF15005M. Please refer to the document for exact specifications by model.

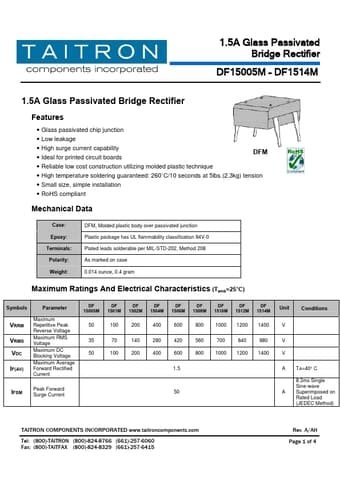

Additional preview pages of the DF1510M datasheet.

Glass passivated chip junction.
Low leakage.
High surge current capability.
Ideal for printed circuit boards DFM.
Reliable low cost construction utilizing molded plastic technique.
High temperature soldering guaranteed: 260˚C/10 seconds at 5lbs. (2.3kg) tension.
Small size, simple installation.
RoHS compliant Mechanical Data Case: Epoxy: Terminals: Polarity: Weight: DFM, Molded plastic body over passivated junctio.
