DF1510S-G

(DF15005S-G - DF1510S-G) SMD General Purpose Bridge Rectifier

DF1510S-G Features

* Ideal for surface mount applications Easy pick and place Plastic package has Underwriters Lab. flammability classification 94V-0 Low forward voltage drop Glass passivated junction DF-S - + .047 (1.2) .039 (1.0) .347 (8.8) .322 (8.2) .255 (8.5) .245 (6.2) .013 (0.33) .003 (0.08) .425 (10.8) .400

DF1510S-G Datasheet (77.64 KB)

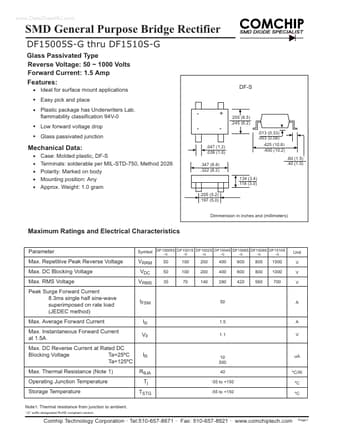

Preview of DF1510S-G PDF

Datasheet Details

Part number:

DF1510S-G

Manufacturer:

Comchip Technology

File Size:

77.64 KB

Description:

(df15005s-g - df1510s-g) smd general purpose bridge rectifier.
www.DataSheet4U.com SMD General Purpose Bridge Rectifier DF15005S-G thru DF1510S-G Glass Passivated Type Reverse Voltage: 50 ~ 1000 Volts Forward Cur.
