DF1510S

SILICON BRIDGE RECTIFIERS

DF1510S Features

* Rating to 1000V PRV Surge overload rating to 50 Amperes peak Glass passivated chip junctions Reliable low cost construction utilizing molded plastic technique results in inexpensive product Lead solderable per MIL-STD-202 method 208 Lead: silver plated copper, solderde plated Plastic material has UL

DF1510S Datasheet (111.58 KB)

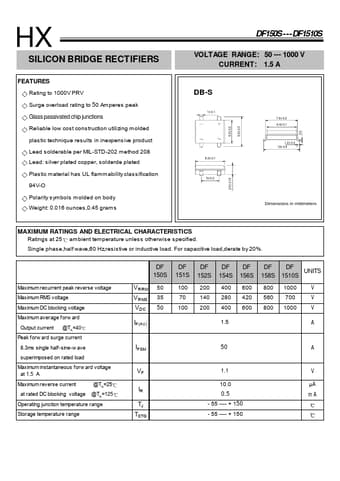

Preview of DF1510S PDF

Datasheet Details

Part number:

DF1510S

Manufacturer:

HX

File Size:

111.58 KB

Description:

Silicon bridge rectifiers.
