DIL-CL-1A81-xx-xxx

Line Sensing Reed Relays

DIL-CL-1A81-xx-xxx Features

*  Pull-In current < 15 mA possible DIMENSIONS All dimensions in mm [inches] ORDER INFORMATION RELAY SERIES CONTACT FORM SWITCH MODEL COIL RESISTANCE (IN Ω) PIN OUT Part Number Example DIL - CL - 1A81 - 9 - 13M 9 is the coil resistance in Ω 13M is the pin out DIL-CL OPTIONS 1A 81 - XX

DIL-CL-1A81-xx-xxx General Description

The DIL-CL series is used for line sensing in many modems, fax machines, private branch exchanges (PBX) and other telecommunication devices. It is superior to semiconductor solutions regarding flashover and impulse strength. The DIL-CL series is approved according to EN60950. CHARACTERISTICS

DIL-CL-1A81-xx-xxx Datasheet (559.97 KB)

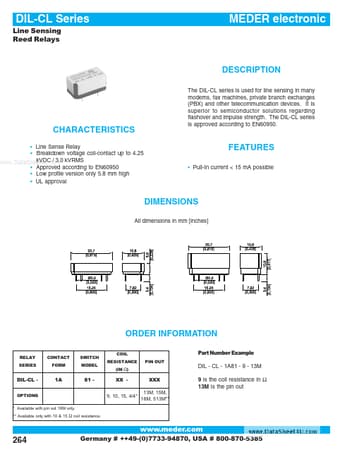

Preview of DIL-CL-1A81-xx-xxx PDF

Datasheet Details

Part number:

DIL-CL-1A81-xx-xxx

Manufacturer:

MEDER

File Size:

559.97 KB

Description:

Line sensing reed relays.
