DIL14 Datasheet - Zetex Semiconductors

DIL14 14 pin package

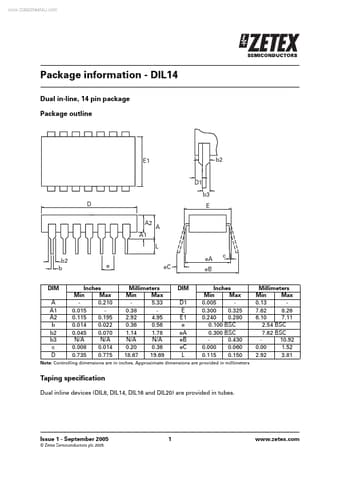

www.DataSheet4U.com Package information - DIL14 Dual in-line, 14 pin package Package outline E1 b2 D1 b3 D A2 A1 L b2 b DIM A A1 A2 b b2 b3 c D E A eA e eC eB DIM D1 E E1 e eA eB eC L c Inches Min Max 0.210 0.015 0.115 0.195 0.014 0.022 0.045 0.070 N/A N/A 0.008 0.014 0.735 0.775 Millimeters Min Max 5.33 0.38 2.92 4.95 0.36 0.56 1.14 1.78 N/A N/A 0.20 0.36 18.67 19.69 Inches Min Max 0.005 0.300 0.325 0.240 0.280 0.100 BSC 0.300 BSC 0.430 0.000 0.060 0.115 0.150 Millimeters Min Max 0..

DIL14_ZetexSemiconductors.pdf
