MT5193 - Mobile Analog TV Receiver SOC

Product Overview

MEDIATEK

Datasheet Details

Part number	MT5193
Manufacturer	MEDIATEK
File Size	302.30 KB
Description	Mobile Analog TV Receiver SOC

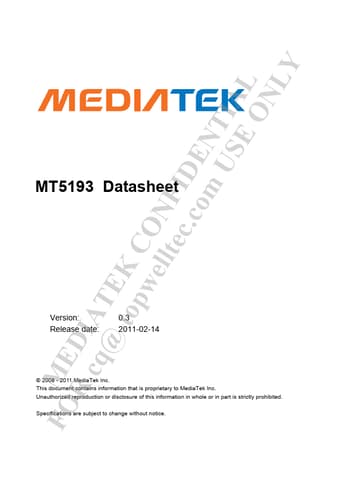

Datasheet	MT5193 Datasheet
Additional preview pages of the MT5193 datasheet.

Product details

Description

Initial Draft Update thermal characteristic Update DC characteristic MediaTek Confidential © 2008-2011 MediaTek Inc.This document contains information that is proprietary to MediaTek Inc.Unauthorized reproduction or disclosure of this information in whole or in part is strictly prohibited.Page 2 of 17 FORMcqED@ItAopTEwelKltCec.OcNoFImDUESNETIOANLLY MT5193 Mobile Analog TV Receiver SOC Confidential A Legal Notice This data sheet contains information that is confidential to MediaTek Inc.

Features

1. Zero-IF direct conversion tuner with VHF/UHF full band tuning range 2. Universal analog broadcasting standard compliant 3. Stereo FM radio reception support 4. Single-ended RF matching support 5. CCIR/601 compliant video interface 6. Dual audio interface (analog/I2S) 7. Dual I/O voltage support (1.8V and 2.8V) 8. Embedded power regulators 9. Excellent video/audio sensitivity 10. Small form factor and low BOM count; occupies small PCB area 11. Excellent stability under multipath and high-spee.
