MT516 - Manganese Titanium Lithium Rechargeable Batteries

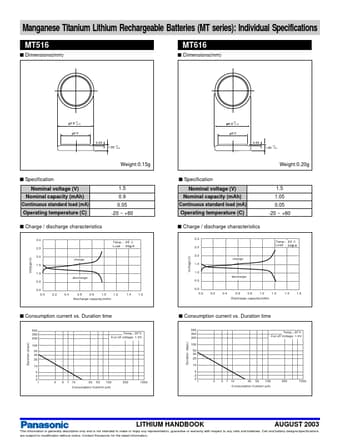

Manganese Titanium Lithium Rechargeable Batteries (MT series): Individual Specifications MT516 Dimensions(mm) MT616 Dimensions(mm) 5.8 +0 -0.15 2.5 0.05 1.65 +0 -0.2 Weight:0.15g Specification Nominal voltage (V) Nominal capacity (mAh) Continuous standard load (mA) Operating temperature (C) 1.5 0.9 0.05 -20 ~ +60 Charge / discharge characteristics Voltage(V) 3.0 Temp : 20 C 2.5 Load : 50 A 2.0 charge 1.5 1.0 discharge 0.5 0.0 0.0 0.2 0.4 0.6 0.8 1.0 1.2 D.

MT516-Panasonic.pdf

MT516 Datasheet Preview — Preview of MT516 PDF

Datasheet Details

Part number:

MT516

Manufacturer:

Panasonic

File Size:

20.01 KB

Description:

Manganese titanium lithium rechargeable batteries.
