GBPC108, GBPC1005, Single Phase Glass Passivated Bridge Rectifier

SINGLE PHASE GLASS PASSIVATED BRIDGE RECTIEFIER GBPC005 ~ GBPC110 Single Phase Glass Passivated Bridge Rectifier .
Max Recurrent Peak Reverse Voltage Max RMS Voltage GBPC 1005 50 35 GBPC 101 100 70 GBPC 102 200 140 GBPC 104 400 280 GBPC 106 600 420 GBPC 108 8.

GBPC1005-MEISEMI.pdf

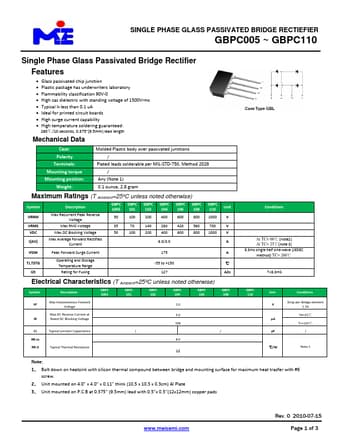

GBPC108 Datasheet Preview — This datasheet PDF includes multiple part numbers: GBPC108, GBPC1005. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GBPC108, GBPC1005

Manufacturer:

MEI SEMI

File Size:

632.96 KB

Description:

Single Phase Glass Passivated Bridge Rectifier

Note:

This datasheet PDF includes multiple part numbers: GBPC108, GBPC1005.
Please refer to the document for exact specifications by model.

Features

* Glass passivated chip junction
* Plastic package has underwriters laboratory
* Flammability classification 90V-0
* High cas dielectric with standing voltage of 1500Vrms
* Typical IR less than 0.1 uA
* Ideal for printed circuit boards
* High surge current capability
