GBU8M, GBU8A - Single Phase Glass Passivated Bridge Rectifier

The GBU8M by MEI SEMI is a Single Phase Glass Passivated Bridge Rectifier. Below is the official datasheet preview.

📥 Download Datasheet

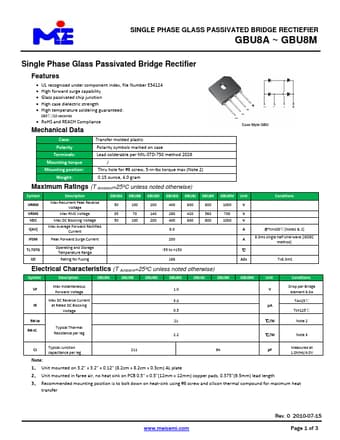

GBU8M Single Phase Glass Passivated Bridge Rectifier by MEI SEMI - Datasheet Preview — Official preview page of the **GBU8M** Single Phase Glass Passivated Bridge Rectifier datasheet (MEI SEMI).

Datasheet Details

Part number	GBU8M, GBU8A
Manufacturer	MEI SEMI
File Size	664.27 KB
Description	Single Phase Glass Passivated Bridge Rectifier
Datasheet	GBU8A-MEISEMI.pdf
Note	This datasheet PDF includes multiple part numbers: GBU8M, GBU8A. Please refer to the document for exact specifications by model.
Additional preview pages of the GBU8M datasheet.

GBU8M Product details

Description

Max Recurrent Peak Reverse Voltage Max RMS Voltage Max DC Blocking Voltage Max Average Forward Rectified Current Peak Forward Surge Current Operating and Storage Temperature Range Rating for Fusing GBU8A 50 35 50 GBU8B 100 70 100 GBU8D 200 140

Features

UL recognized under component index, file Number E54124.
High forward surge capability.
Glass passivated chip junction.
High case dielectric strength.
High temperature soldering guaranteed: 260℃/10 seconds.
RoHS and REACH Compliance Mechanical Data Case: Polarity Terminals: Mounting torque Mounting position: Weight: Transfer molded plastic Polarity symbols marked on case Lead solderable per MIL-STD-750 method 2026 / Thru hole for #6 screw, 5-in-lbs torque max (No.
