MB251W Datasheet - MEI SEMI

MB251W Single-Phase Bridge Rectifier

Max Recurrent Peak Reverse Voltage Max RMS Voltage Max DC Blocking Voltage Max Average Forward Rectified Current Peak Forward Surge Current OperatingStorage Temperature Range Rating for Fusing KBPC250.

MB251W Features

* Low cost

* This series is UL recognized under component index, file number E127707

* Low thermal resistance

* High isolation voltage from case to leads

* High forward surge current capability

* High temperature soldering guaranteed: 260℃/10 seconds, 0.375” (9.5mm) lead len

MB251W Datasheet (652.61 KB)

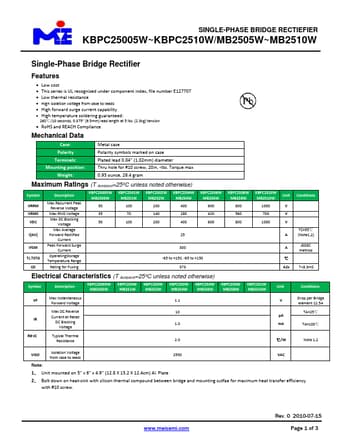

MB251W Datasheet Preview — Preview of MB251W PDF

Datasheet Details

Part number:

MB251W

Manufacturer:

MEI SEMI

File Size:

652.61 KB

Description:

Single-phase bridge rectifier.
