RS3AB - SURFACE MOUNT FAST RECOVERY RECTIFIER

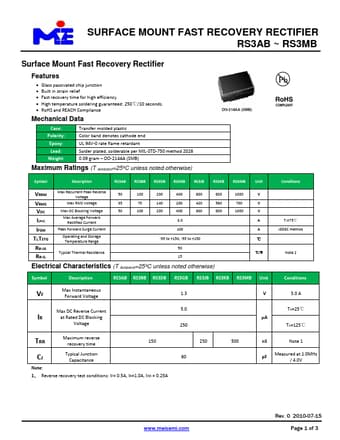

RS3AB Datasheet Preview — Preview of RS3AB PDF

Datasheet Details

Part number	RS3AB
Manufacturer	MEI SEMI
File Size	579.50 KB
Description	SURFACE MOUNT FAST RECOVERY RECTIFIER
Datasheet	RS3AB-MEISEMI.pdf

RS3AB Product details

Description

RS3AB RS3BB RS3DB RS3GB RS3JB RS3KB RS3MB Unit VRRM VRMS VDC I(AV) IFSM TJ,TSTG Rθ-JA Rθ-JL Max Recurrent Peak Reverse Voltage Max RMS Voltage Max DC Blocking Voltage Max Average Forward Rectified Current Peak Forward Surge Current Operating and Storage Temperature Range Typical Thermal Resistance 50 35 50 100 200 400 600 800 70 140 280 420 560 100 200 400 600 800 3.0 100 -55 to +150, -55

Features

Glass passivated chip junction.
Built in strain relief.
Fast recovery time for high efficiency.
High temperature soldering guaranteed: 250℃/10 seconds.
RoHS and REACH Compliance Mechanical Data Case: Polarity: Epoxy: Lead: Weight: Transfer molded plastic Color band denotes cathode end UL 94V-0 rate flame retardant Solder plated, solderable per MIL-STD-750 method 2026 0.09 gram.
DO-214AA (SMB) Maximum Ratings (T Ambient=25ºC unless noted otherwise) Symbol.
