SFR302, SFR301 Datasheet - MEI SEMI

SFR302 SOFT FAST RECOVERY RECTIFIER

SFR301 SFR302 SFR303 SFR304 SFR305 SFR306 SFR307 Unit Conditions VRRM VRMS VDC Max Recurrent Peak Reverse Voltage Max RMS Voltage Max DC Blocking Voltage 50 100 200 400 600 800 1000 V 35 70 140 280 420 560 700 V 50 100 200 400 600 800 1000 V I(AV) Max Average Forward Rectified .

SFR302 Features

* Fast switching speed for high efficiency

* Low reverse leakage

* High forward surge current capacity

* High temperature soldering guaranteed: 260℃/10 seconds, 0.375” (9.5mm) lead length

* RoHS and REACH Compliance Mechanical Data Case: Polarity: Epoxy: Lead: Mounting position

SFR301-MEISEMI.pdf

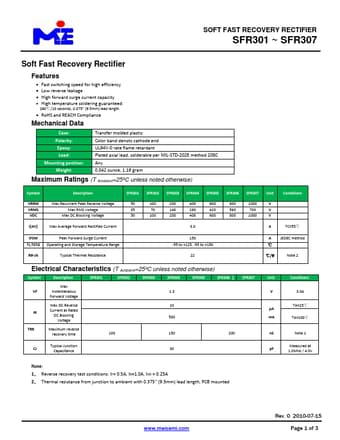

SFR302 Datasheet Preview — This datasheet PDF includes multiple part numbers: SFR302, SFR301. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SFR302, SFR301

Manufacturer:

MEI SEMI

File Size:

512.38 KB

Description:

Soft fast recovery rectifier.

Note:

This datasheet PDF includes multiple part numbers: SFR302, SFR301.
Please refer to the document for exact specifications by model.
