SFR307, SFR301 - SOFT FAST RECOVERY RECTIFIER

The SFR307 by MEI SEMI is a SOFT FAST RECOVERY RECTIFIER. Below is the official datasheet preview.

SFR307 SOFT FAST RECOVERY RECTIFIER by MEI SEMI - Datasheet Preview — Official preview page of the **SFR307** SOFT FAST RECOVERY RECTIFIER datasheet (MEI SEMI).

Datasheet Details

Part number	SFR307, SFR301
Manufacturer	MEI SEMI
File Size	512.38 KB
Description	SOFT FAST RECOVERY RECTIFIER
Datasheet	SFR301-MEISEMI.pdf
Note	This datasheet PDF includes multiple part numbers: SFR307, SFR301. Please refer to the document for exact specifications by model.

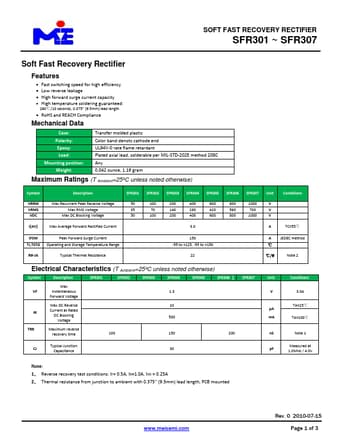

Additional preview pages of the SFR307 datasheet.

SFR307 Product details

Description

SFR301 SFR302 SFR303 SFR304 SFR305 SFR306 SFR307 Unit Conditions VRRM VRMS VDC Max Recurrent Peak Reverse Voltage Max RMS Voltage Max DC Blocking Voltage 50 100 200 400 600 800 1000 V 35 70 140 280 420 560 700 V 50 100 200 400 600 800 1000 V I(AV) Max Average Forward Rectified Current 3.0 A TC=55℃ IFSM Peak Forward Surge Current TJ

Features

Fast switching speed for high efficiency.
Low reverse leakage.
High forward surge current capacity.
High temperature soldering guaranteed: 260℃/10 seconds, 0.375” (9.5mm) lead length.
RoHS and REACH Compliance Mechanical Data Case: Polarity: Epoxy: Lead: Mounting position: Weight: Transfer molded plastic Color band denots cathode end UL94V-0 rate flame retardant Plated axial lead, solderable per MIL-STD-202E method 208C Any 0.042 ounce, 1.19 gram Maximum Ratings (T.
