DF10 SINGLE-PHASE BRIDGE RECTIFIER

DF10 Description

SINGLE-PHASE BRIDGE RECTIFIER DF005 THRU DF10 DB101 THRU DB107 VOLTAGE RANGE CURRENT 50 to 1000 Volts 1.0 Ampere .

DF10 Features

* Glass passivated chip junction
* High forward surge current capability
* Ideal for printed circuit board
* High temperature soldering guaranteed: 260℃/10 seconds at terminals MECHANICAL DATA
* Case: Transfer molded plastic
* Epoxy: UL94V-0 rate flame

📥 Download Datasheet

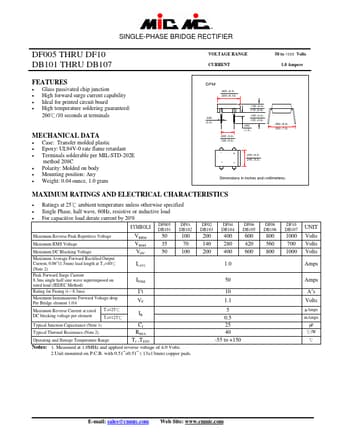

Preview of DF10 PDF
datasheet Preview Page 2

Datasheet Details

Part number
DF10
Manufacturer
MIC
File Size
51.92 KB
Datasheet
DF10-MIC.pdf
Description
SINGLE-PHASE BRIDGE RECTIFIER
