GBPC110, GBPC1005 GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

GBPC110 Description

GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER GBPC1005 THRU GBPC110 .

GBPC110 Features

* Plastic package has underwriters laboratory
* Flammability classification 94V-0
* Glass passivated ship junction
* High case dielectric with standing voltage of 1500VRMS
* Tyoical IR less than 0.1μA
* High surge current capability
* Ideal fo

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GBPC110, GBPC1005. Please refer to the document for exact specifications by model.

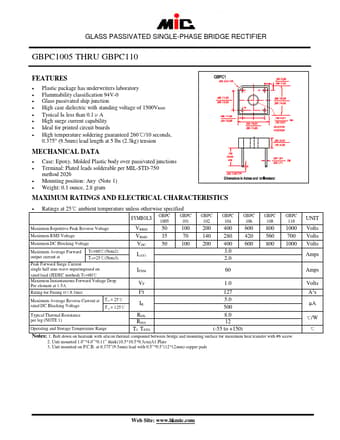

datasheet Preview Page 2

Datasheet Details

Part number
GBPC110, GBPC1005
Manufacturer
MIC
File Size
82.80 KB
Datasheet
GBPC1005-MIC.pdf
Description
GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: GBPC110, GBPC1005.
Please refer to the document for exact specifications by model.
