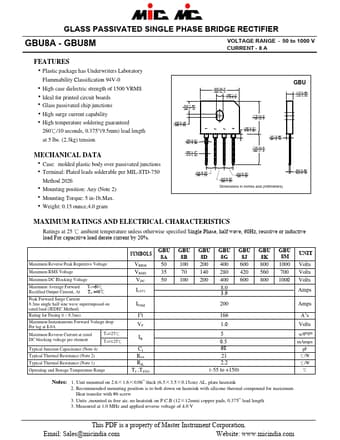

Part number:
GBU8M
Manufacturer:
MIC
File Size:
419.83 KB
Description:
Glass passivated single phase bridge rectifier.
* ▪ Plastic package has Underwriters Laboratory Flammability Classification 94V-0 ▪ High case dielectric strength of 1500 VRMS ▪ Ideal for printed circuit boards ▪ Glass passivated chip junctions ▪ High surge current capability ▪ High temperature soldering guaranteed 260℃/10 seconds, 0.375”(9.5mm) lea
GBU8M
MIC
419.83 KB
Glass passivated single phase bridge rectifier.
