HER501 HIGH EFFICIENCY RECTIFIER

HER501 Description

HIGH EFFICIENCY RECTIFIER HER501 THRU HER507 VOLTAGE RANGE CURRENT 50 to 800 Volts 5.0Ampere .

HER501 Features

* Low coat construction
* Fast switching for high efficency.
* Low reverse leakage
* High forward surge current capability
* High temperature soldering guaranteed: 260℃/10 secods/.375”(9.5mm)lead length at 5 lbs(2.3kg) tension MECHANICAL DATA
* Case: T

📥 Download Datasheet

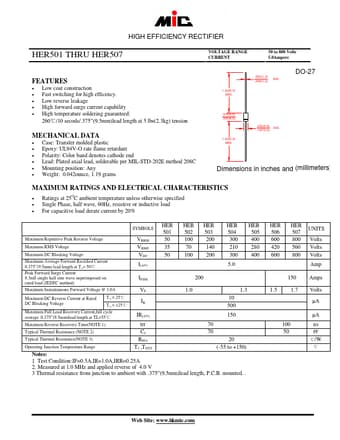

Preview of HER501 PDF
datasheet Preview Page 2

Datasheet Details

Part number
HER501
Manufacturer
MIC
File Size
69.83 KB
Datasheet
HER501-MIC.pdf
Description
HIGH EFFICIENCY RECTIFIER
