MDF01

SURFACE MOUNT BRIDGE

MDF01 Features

* Glass passivated chip junction Ideal for surface mounted applications

* Low leakage

* High forward surge current capability

* High temperature soldering guaranteed: 260℃/10 seconds at terminals MINI DFS 0.5 5o 4.7±0.2 6.65±0.15 5o 3.9±0.1 5o 0.5 1.10±0.02 2.4±0

MDF01 Datasheet (37.70 KB)

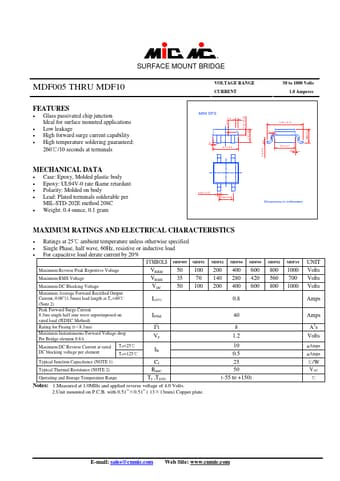

Preview of MDF01 PDF

Datasheet Details

Part number:

MDF01

Manufacturer:

MIC

File Size:

37.70 KB

Description:

Surface mount bridge.
