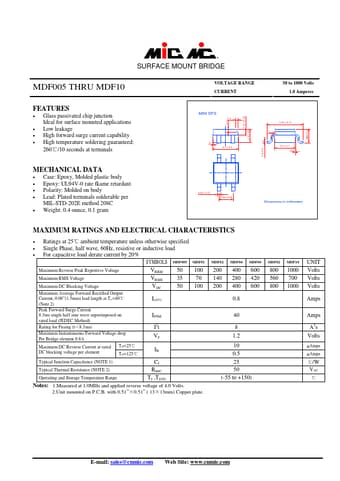

MDF04 Features
* Glass passivated chip junction Ideal for surface mounted applications
* Low leakage
* High forward surge current capability
* High temperature soldering guaranteed: 260℃/10 seconds at terminals MINI DFS 0.5 5o 4.7±0.2 6.65±0.15 5o 3.9±0.1 5o 0.5 1.10±0.02 2.4±0
Datasheet Details
MDF04, MDF005
MIC
37.70 KB
Surface mount bridge.
This datasheet PDF includes multiple part numbers: MDF04, MDF005.
Please refer to the document for exact specifications by model.
