MUR1010CT - GLASS PASSIVATED SUPER FAST RECTIFIER

MUR1010CT Description

GLASS PASSIVATED SUPER FAST RECTIFIER MUR1010CT - MUR1060CT Voltage Range - 100 to 600 V Forward Current - 10 A .

MUR1010CT Features

* ▪ Plastic package has Underwriters Laboratory Flammability Classification 94V-0 ▪ Fast switching for high efficiency ▪ Low forward voltage drop ▪ Single rectifier construction ▪ High surge capability ▪ For use in low voltage ,high frequency inverters, free wheeling, and polarity protection app

MUR1010CT Applications

* ▪ High temperature soldering guaranteed:260 °C/10 seconds, 0.25”(6.35mm) from case ▪ Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC MECHANICAL DATA ▪ Case: JEDEC TO-220 AC molded plastic body ▪ Epoxy: UL94V-0 rate flame retardant ▪ Lead: Plated axial leads, solderable per MIL-ST

📥 Download Datasheet

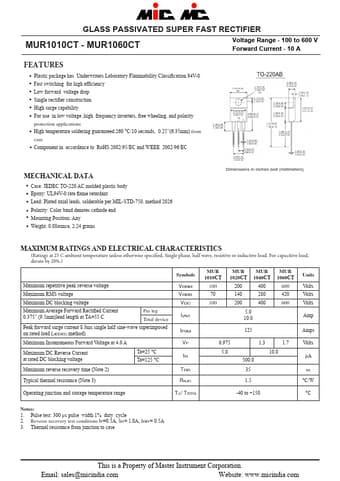

Preview of MUR1010CT PDF
datasheet Preview Page 2

Datasheet Details

Part number
MUR1010CT
Manufacturer
MIC
File Size
459.68 KB
Datasheet
MUR1010CT-MIC.pdf
Description
GLASS PASSIVATED SUPER FAST RECTIFIER
