SM22, SM20 - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

SM22 Description

SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR SM6.8 THRU SM200CA Breakdown Voltage Peak Pulse Power 6.8 to 200 Volts 400 Watts .

SM22 Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O

SM22 Applications

* Glass passivated junction
* Low inductance surge resistance
* Fast response time: typical less than 1.0ps from 0 volts to V(BR) for unidirectional AND 5.0ns for bidirectional types
* 400W peak pulse capability with a 10/1000μs waveform, repetition rate (duty cycle):

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SM22, SM20. Please refer to the document for exact specifications by model.

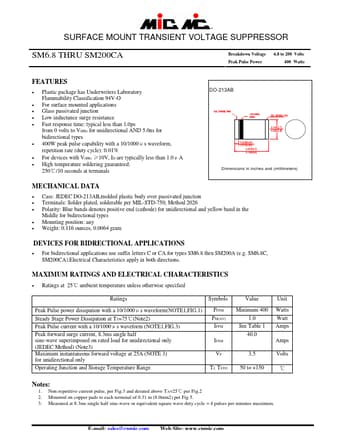

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SM22, SM20
Manufacturer
MIC
File Size
56.33 KB
Datasheet
SM20-MIC.pdf
Description
SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Note
This datasheet PDF includes multiple part numbers: SM22, SM20.
Please refer to the document for exact specifications by model.
