SMAJ7.5C - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSORS

Product Overview

MIC

Part number	SMAJ7.5C
Manufacturer	MIC
File Size	378.24 KB
Description	SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSORS
Datasheet	SMAJ7.5C Datasheet
Note	This datasheet PDF includes multiple part numbers: SMAJ7.5C, SMAJ5.0. Please refer to the document for exact specifications by model.

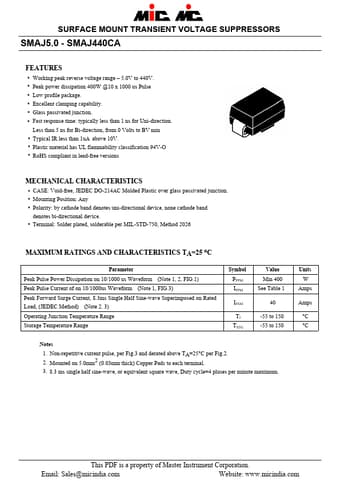

Additional preview pages of the SMAJ7.5C datasheet.

Working peak reverse voltage range.
5.0V to 440V.
Peak power dissipation 400W @10 x 1000 us Pulse.
Low profile package.
Excellent clamping capability.
Glass passivated junction.
Fast response time: typically less than 1 ns for Uni-direction. Less than 5 ns for Bi-direction, from 0 Volts to BV min.
Typical IR less than 1uA above 10V.
Plastic material has UL flammability classification 94V-O.
RoHS compliant in lead-free versions.
