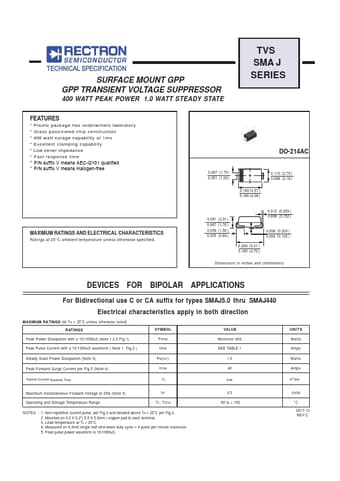

SMAJ7.5, SMAJ5.0, TRANSIENT VOLTAGE SUPPRESSOR

SURFACE MOUNT GPP GPP TRANSIENT VOLTAGE SUPPRESSOR 400 WATT PEAK POWER 1.0 WATT STEADY STATE TVS SMA J SERIES .

SMAJ5.0-Rectron.pdf

SMAJ7.5 Datasheet Preview — This datasheet PDF includes multiple part numbers: SMAJ7.5, SMAJ5.0. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SMAJ7.5, SMAJ5.0

Manufacturer:

Rectron

File Size:

212.90 KB

Description:

TRANSIENT VOLTAGE SUPPRESSOR

Note:

This datasheet PDF includes multiple part numbers: SMAJ7.5, SMAJ5.0.
Please refer to the document for exact specifications by model.

Features

* Plastic package has underwriters laboratory
* Glass passivated chip construction
* 400 watt surage capability at 1ms
* Excellent clamping capability
* Low zener impedance
* Fast response time
* P/N suffix V means AEC-Q101 qualified
* P/N suffix V means Halogen-free

Applications

* For Bidirectional use C or CA suffix for types SMAJ5.0 thru SMAJ440 Electrical characteristics apply in both direction MAXIMUM RATINGS (At TA = 25oC unless otherwise noted) RATINGS SYMBOL VALUE Peak Power Dissipation with a 10/1000uS (Note 1,2,5 Fig.1) PPPM Minimum 400 Peak Pulse Current wi
