RV-3028-C8 - Extreme Low Power RTC

MICRO CRYSTAL SWITZERLAND

📥 Download Datasheet

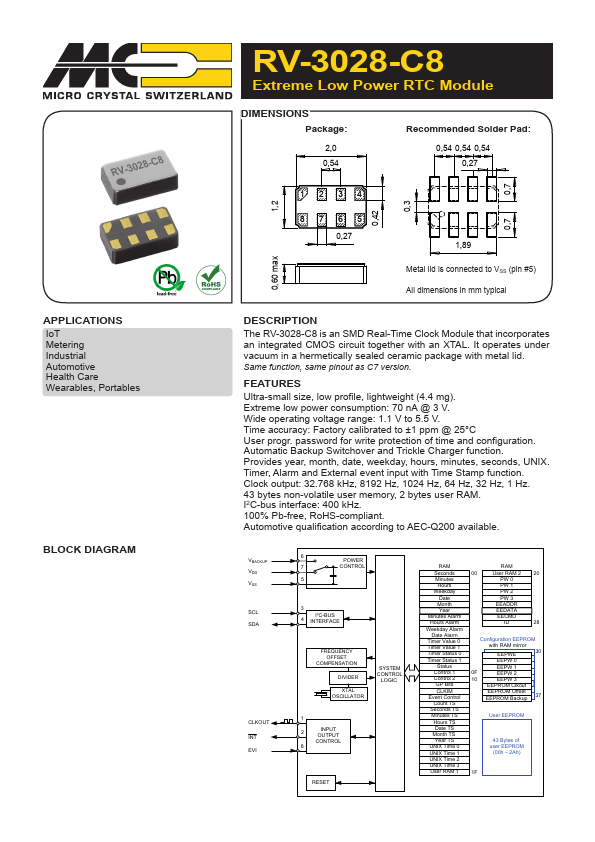

RV-3028-C8 Datasheet Preview — Preview of RV-3028-C8 PDF

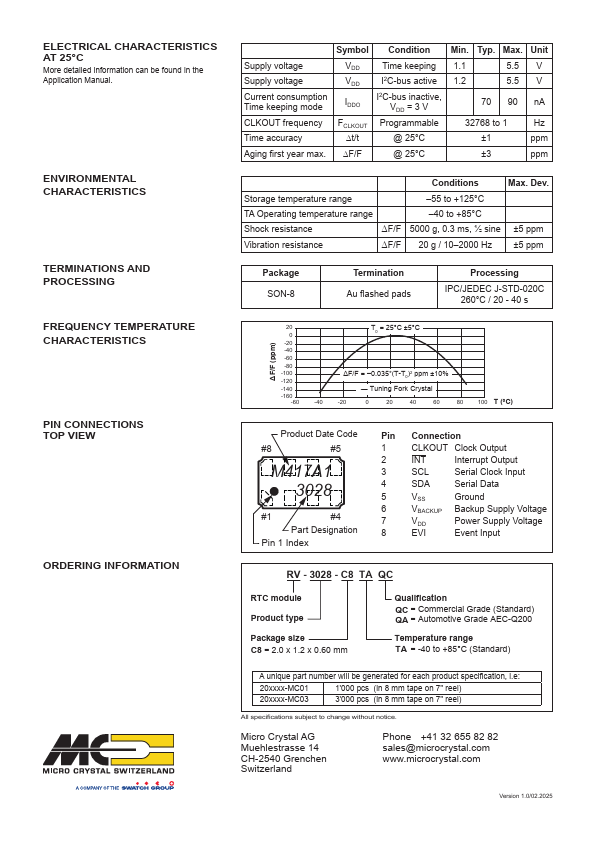

datasheet Preview Page 2

Datasheet Details

Part number: RV-3028-C8
Manufacturer: MICRO CRYSTAL SWITZERLAND
File Size: 559.68 KB
Datasheet: RV-3028-C8-MICROCRYSTALSWITZERLAND.pdf
Description: Extreme Low Power RTC

RV-3028-C8 Product details

Description

The RV-3028-C8 is an SMD Real-Time Clock Module that incorporates an integrated CMOS circuit together with an XTAL.

Features

Ultra-small size, low profile, lightweight (4.4 mg). Extreme low power consumption: 70 nA @ 3 V. Wide operating voltage range: 1.1 V to 5.5 V. Time accuracy: Factory calibrated to ±1 ppm @ 25°C User progr. password for write protection of time and configuration. Automatic Backup Switchover and Trickle Charger function. Provides year, month, date, weekday, hours, minutes, seconds, UNIX. Timer, Alarm and External event input with Time Stamp function. Clock output: 32.768 kHz, 8192 Hz, 1024 Hz, 64.
