RV-3029-C3 Datasheet - MICRO CRYSTAL SWITZERLAND

RV-3029-C3 Real Time Clock Module

The RV-3029-C3 is an ultra miniature Real-Time-Clock Module with embedded Crystal. This RTC has an I2C Bus (2-wire SerialInterface) and offers temperature compensated time. The STC-Smart Temperature Compensation is calibrated in the factory and leads to a very high time-accuracy of ± 6ppm from -40°.

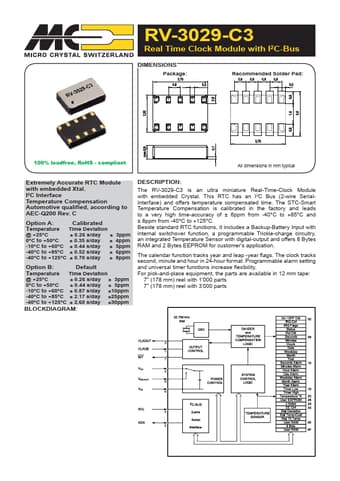

RV-3029-C3 Real Time Clock Module with I2C-Bus DIMENSIONS Package: 3,70 0,8 0,3 Recommended Solder Pad: 0,8 0,8 0,8 0,8 0,5 1 2 345 max.0,9 2,50 0,1 0,6 0,8 1,4 0,8 3,0 10 9 8 7 6 3,70 100% leadfree, RoHS - compliant All dimensions in mm typical Extremely Accurate RTC Module with embedded Xtal. I2C Interface Temperature Compensation Automotive qualified, according to AEC-Q200 Rev. C Option A: Calibrated Temperature Time Deviation @ +25°C ± 0.26 s/day ± 3ppm 0°C to +50°C ± 0.35 s/.

RV-3029-C3-MICROCRYSTALSWITZERLAND.pdf
