CCM2020 Datasheet - MICRO ELECTRONICS

LCD

CCM2020 Features

* Number of Characters Display Font Built-in Controller Input Data Power Supply Duty Cycle Options CCM2020 20 x 2 lines Character 20 characters x 2 lines 5 x 8 dots HD44780 or Comp 4 Bits or 8-Bits Interface +5 V Single Power 1/16 Duty EL/LED Backlight, TN/STN

* MECHANICAL PARAMETERS Module

CCM2020 General Description

Ground Supply Voltage for Logic LCD Contrast Adjust Register Select Read / Write Enable Data Bit 0 Data Bit 1 Data Bit 2 Data Bit 3 Data Bit 4 Data Bit 5 Data Bit 6 Data Bit 7 LED Backlight LED Backlight CCM2020 20 x 2 lines Character No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 * Function .

CCM2020 Datasheet (127.11 KB)

CCM2020 Datasheet Preview — Preview of CCM2020 PDF

Datasheet Details

Part number:

CCM2020

Manufacturer:

MICRO ELECTRONICS

File Size:

127.11 KB

Description:

Lcd.

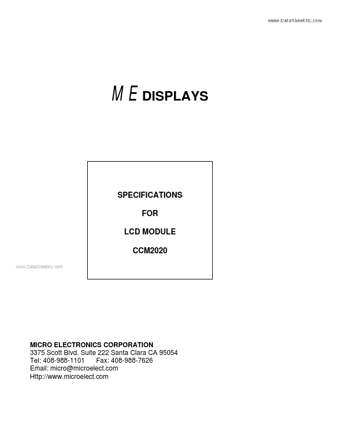

ME DISPLAYS SPECIFICATIONS FOR LCD MODULE CCM2020 www.DataSheet4U.com MICRO ELECTRONICS CORPORATION 3375 Scott Blvd. Suite 222 Santa Clara CA 95054 .
