CCM202B Alphanumeric LCD

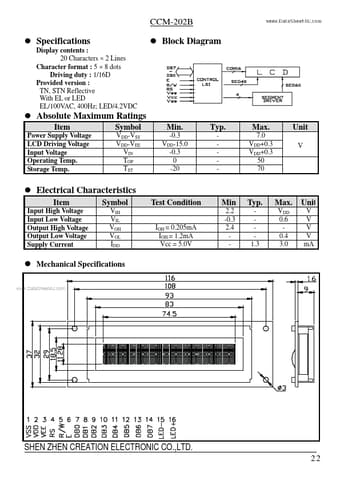

CCM-202B Specifications Display contents : 20 Characters × 2 Lines Character format : 5 × 8 dots Driving duty : 1/16D Provided version : TN, STN Reflective With EL or LED EL/100VAC, 400Hz; LED/4.2VDC Absolute Maximum Ratings Item Power Supply Voltage LCD Driving Voltage Input Voltage Operating Temp. Storage Temp. Symbol VDD-VSS VDD-VEE VIN TOP TST Block Diagram Min. -0.3 VDD-15.0 -0.3 0 -20 Typ. - Max. 7.0 VDD+0.3 VDD+0.3 50 70 Unit V Electrical Characteristics Item Input High Voltage .
