BT21603 - 3 mm Character Height LCD Modules

Datasheet Summary

Description

GND (0 V) Power Supply (5 V) Supply Voltage (LCD Driver) Register Select - LOW = Instruction, High = Data Read / Write LOW = MPU to LCM, High = LCM to MPU Enable R / W = LOW: Data are taking over at falling edge of E R / W = HIGH: Data can be read at E = 1 Data Bus - Software selectable 4 or 8 Bit M

📥 Download Datasheet

Datasheet preview – BT21603

Datasheet Details

Part number BT21603
Manufacturer MICRO LINE
File Size 156.05 KB
Description 3 mm Character Height LCD Modules
Datasheet download datasheet BT21603 Datasheet
Additional preview pages of the BT21603 datasheet.

📁 Similar Datasheet

  • BT21608 - 8 mm Character Height LCD Modules - MACRO LINE (ETC)
  • BT218 - 20 MSPS Monolithic CMOS 8-bit Flash Video A/D Converter (Brooktree)
  • BT218KP - 20 MSPS Monolithic CMOS 8-bit Flash Video A/D Converter (Brooktree)
  • BT201 - DC/DC Converters (ETC)
  • BT202 - DC/DC Converters (ETC)
  • BT2025 - Classic V2 Stadium scoreboards (Bodet)
  • BT2025 - Alpha V2 Stadium scoreboards (Bodet)
  • BT203 - DC/DC Converters (ETC)
  • BT204 - DC/DC Converters (ETC)
  • BT205 - DC/DC Converters (ETC)
Other Datasheets by MICRO LINE

    Full PDF Text Transcription

    Click to expand full text

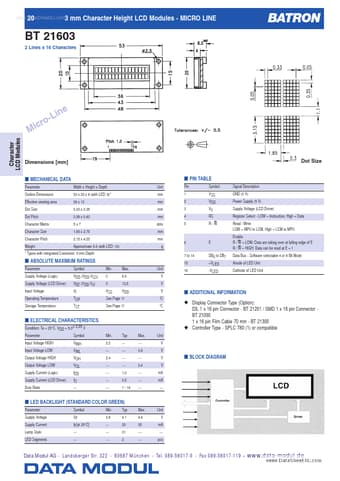

    www.DataSheet4U.com 20 3 mm Character Height LCD Modules - MICRO LINE BATRON BT 21603 2 Lines x 16 Characters ne i L cro i M Character LCD Modules Dimensions [mm] I MECHANICAL DATA Parameter Outline Dimensions Effective viewing area Dot Size Dot Pitch Character Matrix Character Size Character Pitch Weight Width x Height x Depth 53 x 20 x 8 (with LED: 8)* 36 x 10 0.33 x 0.35 0.38 x 0.40 5x7 1.85 x 2.75 2.15 x 4.25 Approximate 9.5 (with LED: 10) Unit mm mm mm mm dots mm mm g 6 7 to 14 15 Min. 0 0 VSS Max. 6.
