BT21608 8 mm Character Height LCD Modules - MACRO LINE

GND (0 V) Power Supply (5 V) Supply Voltage (LCD Driver) Register Select - LOW = Instruction, High = Data Read / Write LOW = MPU to LCM, HIGH = LCM to MPU Enable R / W = LOW: Data are taking over at falling edge of E R / W = HIGH: Data can be read at E = 1 Data Bus - Software selectable 4 or 8 Bit M.

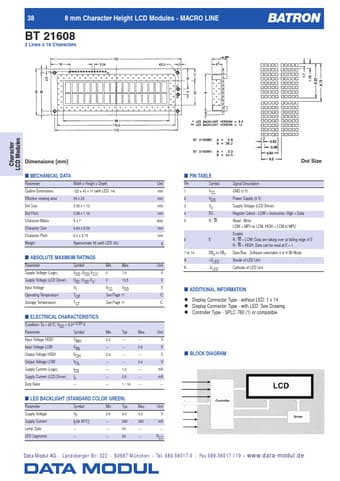

38 8 mm Character Height LCD Modules - MACRO LINE BATRON BT 21608 2 Lines x 16 Characters Character LCD Modules Dimensions [mm] I MECHANICAL DATA Parameter Outline Dimensions Effective viewing area Dot Size Dot Pitch Character Matrix Character Size Character Pitch Weight Width x Height x Depth 122 x 43 x 11 (with LED: 14) 99 x 23 0.92 x 1.10 0.98 x 1.16 5x7 4.84 x 8.06 6.0 x 9.75 Approximate 55 (with LED: 60) Unit mm mm mm mm dots mm mm g 6 7 to 14 A Min. 0 0 VSS Max. 7.0 13.5 VDD Unit V V .
