BT232-800D - 4Q Triac

Datasheet Summary

Description

Planar passivated very sensitive gate four quadrant triac in a TO92 plastic package intended for use in applications requiring direct interfacing to logic ICs and low power gate drivers.

2.

Features

  • High blocking voltage capability.
  • Very sensitive gate.
  • Planar passivated for voltage ruggedness and reliability.
  • Triggering in all four quadrants.
  • Direct interfacing to logic level ICs.
  • Direct interfacing to low power gate drive circuits 3.

📥 Download Datasheet

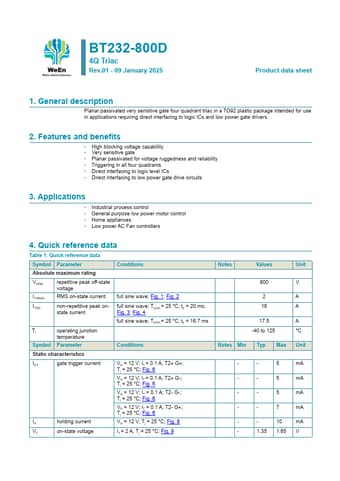

Datasheet preview – BT232-800D

Datasheet Details

Part number BT232-800D
Manufacturer WeEn
File Size 549.31 KB
Description 4Q Triac
Datasheet download datasheet BT232-800D Datasheet
Additional preview pages of the BT232-800D datasheet.

📁 Similar Datasheet

Other Datasheets by WeEn

Full PDF Text Transcription

Click to expand full text
BT232-800D 4Q Triac Rev.01 - 09 January 2025 Product data sheet 1. General description Planar passivated very sensitive gate four quadrant triac in a TO92 plastic package intended for use in applications requiring direct interfacing to logic ICs and low power gate drivers. 2. Features and benefits • High blocking voltage capability • Very sensitive gate • Planar passivated for voltage ruggedness and reliability • Triggering in all four quadrants • Direct interfacing to logic level ICs • Direct interfacing to low power gate drive circuits 3. Applications • Industrial process control • General purpose low power motor control • Home appliances • Low power AC Fan controllers 4. Quick reference data Table 1.
