BT234X-800D - 4Q Triac

Product Overview

NXP

BT234X-800D 4Q Triac by NXP - Datasheet Preview — Datasheet preview – BT234X-800D

Datasheet Details

Part number	BT234X-800D
Manufacturer	NXP
File Size	178.82 KB
Description	4Q Triac
Datasheet	BT234X-800D Datasheet

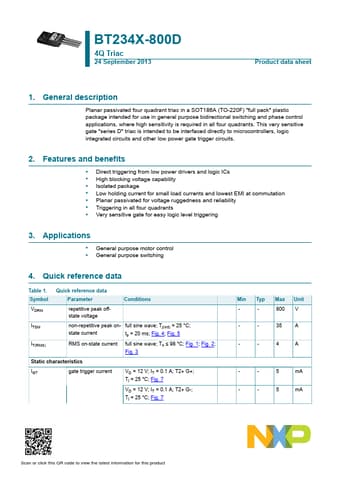

Additional preview pages of the BT234X-800D datasheet.

Product details

Description

Planar passivated four quadrant triac in a SOT186A (TO-220F) "full pack" plastic package intended for use in general purpose bidirectional switching and phase control applications, where high sensitivity is required in all four quadrants.

Features

Direct triggering from low power drivers and logic ICs.
High blocking voltage capability.
Isolated package.
Low holding current for small load currents and lowest EMI at commutation.
Planar passivated for voltage ruggedness and reliability.
Triggering in all four quadrants.
Very sensitive gate for easy logic level triggering 3.
