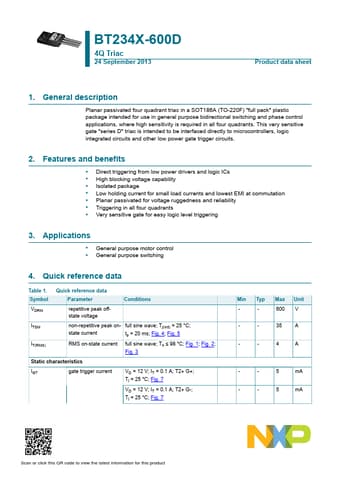

BT234X-600D 4Q Triac

Planar passivated four quadrant triac in a SOT186A (TO-220F) "full pack" plastic package intended for use in general purpose bidirectional switching and phase control applications, where high sensitivity is required in all four quadrants. This very sensitive gate "series D" triac is intended to be i.

BT234X-600D Features

* Direct triggering from low power drivers and logic ICs

* High blocking voltage capability

* Isolated package

* Low holding current for small load currents and lowest EMI at commutation

* Planar passivated for voltage ruggedness and reliability

* Trig
